INA FAG - UCF204 - Housing Unit Ucf

OEM Supplier

SKU: ina-fag-ucf204

INA FAG - UCF204 - Housing Unit Ucf

€22.29€19.05 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€22.29

Brand
INA/FAG
Part Numbers
ucf204
OEM Part Numbers

Skf

Ntn

Nsk

Koyo

Timken

Pros
Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated
Unit
Each
Includes
Bearing block Bearing Grease nipple
Properties
Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Housing type
Square flange
Total height
33,3 mm
aTotal length
86 mm
aHousing width
86 mm
lHousing height
25,5 mm
Mounting holes diameter
12 mm
Basic radial load static
6600 N
dBearing inside diameter
20 mm
eMounting holes distance
64 mm
Basic radial load dynamic
12800 N
BiBearing inner ring width
31 mm
Grease nipple thread diameter
M6
Bearing balls distance to locking side end
15 mm
lBearing balls distance to mounting surface
12,7 mm
EAN
4047643301916
Manufacturer
INA/FAG

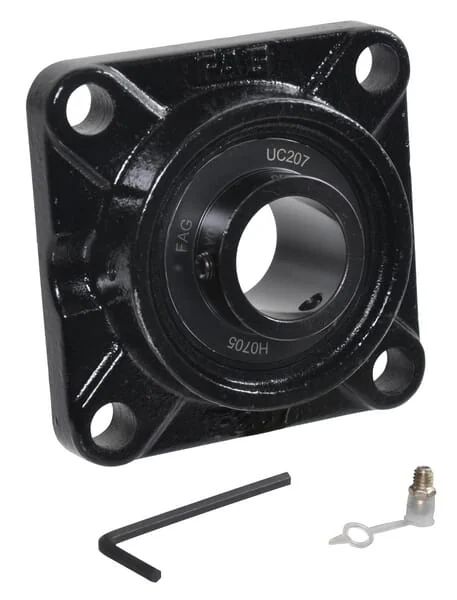

These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,981 genuine Ina-fag spare parts.
