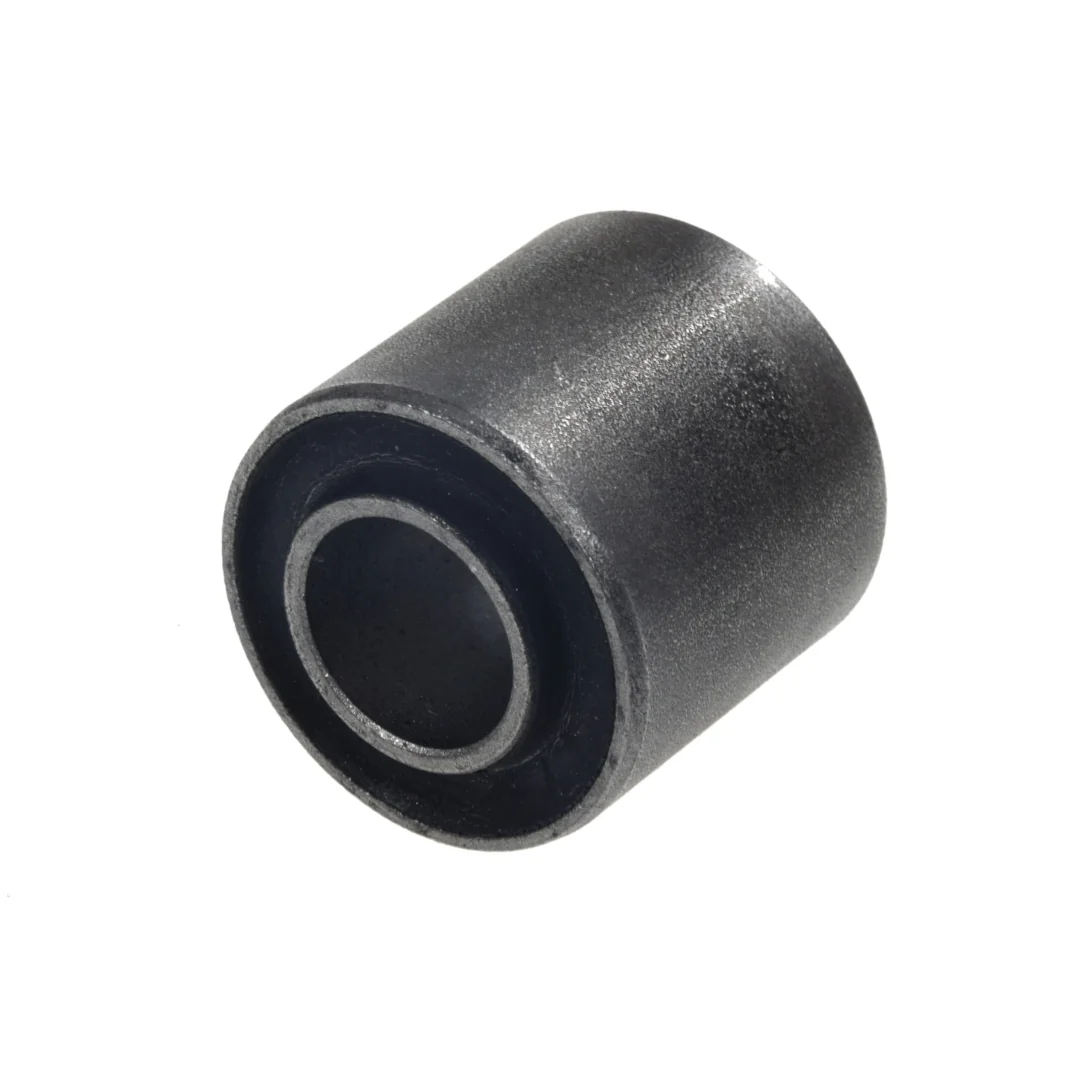

JAG - 647429.03 - Metal-Rubber Bushing Claas

This metal-rubber bushing serves as a vibration-damping pivot point within the threshing mechanism of a grain harvester. It is installed at a linkage or shaft connection where it absorbs shock loads and allows controlled rotational movement between metal components. A worn or collapsed bushing introduces play in the linkage, which can cause misalignment of the threshing drum or concave clearance, leading to uneven threshing or increased mechanical noise. The manufacturer machines the metal sleeve and bonds the rubber layer to match the original assembly's interference fit, so the bushing seats firmly in its bore without additional shimming. On replacement, ensure the bore is clean and free of corrosion before pressing the bushing into place.
