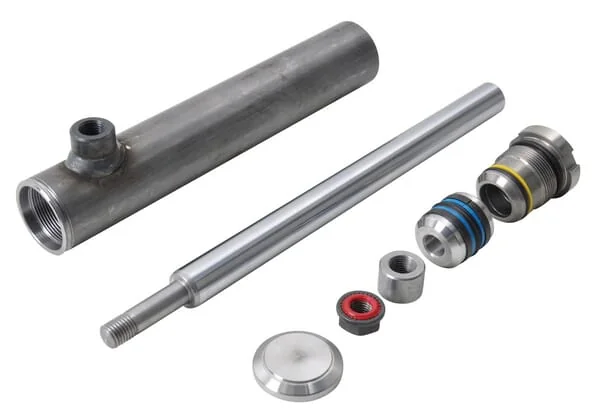

Kramp-d1625100 - Cylinder DIY D/A D16-25-100

OEM Quality

SKU: kramp-d1625100

Kramp-d1625100 - Cylinder DIY D/A D16-25-100

€39.61

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€39.61

Unique innovative construction Highly reliable due to innovative special piston lock Reusable mechanical cylinder head locking Maximum working pressure depends on maximum buckling load For maximum buckling load, see cylinder software Maximum radial load: 10% of the axial load Medium: mineral oil, HLP ISO VG 32 to ISO VG 46 Cleanliness of medium: ISO 4406 22/20/17 or NAS 9
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 86,632 genuine Kramp spare parts.

Brand
Kramp
Part Numbers
d1625100
Pros
Cylinder can be adjusted to any required length. Simple assembly
Unit
Each
AStroke
100 mm
Includes
Complete self-assembly kit Assembly instructions Without fastenings
BMin. length
243 mm
Rod diameter
16 mm
Rod material
Steel 20MnV6
Inside diameter
25 mm
Product details
Unique innovative construction Highly reliable due to innovative special piston lock Reusable mechanical cylinder head locking Maximum working pressure depends on maximum buckling load For maximum buckling load, see cylinder software Maximum radial load: 10% of the axial load Medium: mineral oil, HLP ISO VG 32 to ISO VG 46 Cleanliness of medium: ISO 4406 22/20/17 or NAS 9
Nominal pressure
200 BAR
Cylinder material
Stainless steel 52.0
EOutside diameter
35 mm
Head nut material
Cast iron
Max. piston speed
0,1 m/s
Guide ring material
Plastic
Application category
Do it yourself
Max. working pressure
250 BAR
Rod surface roughness
0,2 µm
Rod surface treatment
Chromated
Oil connection material
Steel
Max. working temperature
85 °C
Min. working temperature
-25 °C
Mounting type - rod connection
No mounting
Oil connection inside diameter
18 mm
FCylinder end to rod end distance
53 mm
Mounting type - cylinder connection
No mounting
Cylinder material tolerance class code
H10
CMounting thread diameter - cylinder connection
1/4 Inch
HOil connection centre to cylinder end distance - rod side
44 mm
EAN
5700038821336
Manufacturer
Kramp
