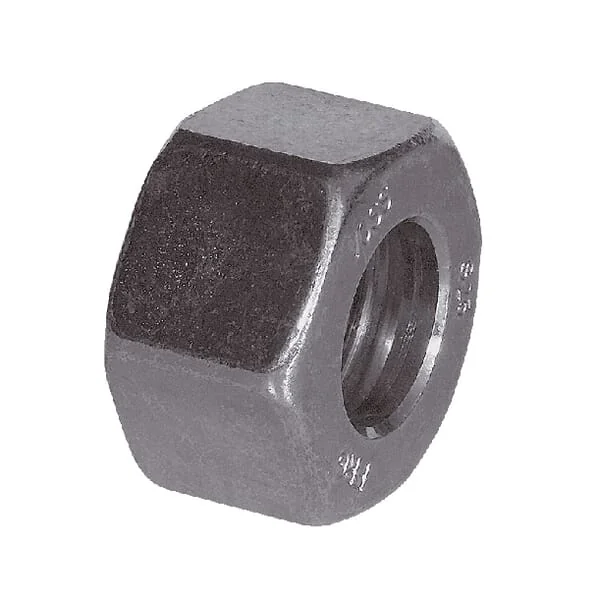

Voss - DGWEV12SM18 - Voss Swivel coupling 12S M18

OEM Quality

SKU: voss-dgwev12sm18

Voss - DGWEV12SM18 - Voss Swivel coupling 12S M18

€107.87€92.20 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€107.87

Brand
Voss
Part Numbers
DGWEV12SM18
Pros
2S cutting ring
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Series
12S

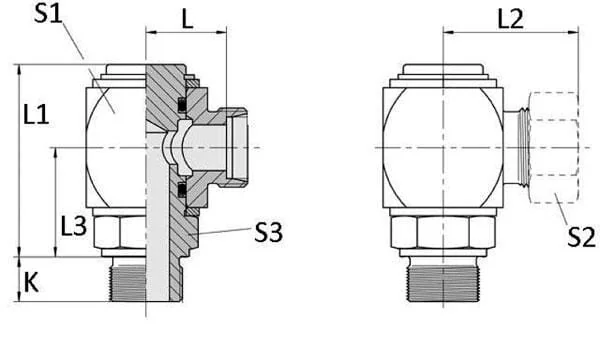

L1Length
58,5 mm
DIN standard
2401 2353 228 3852 259
Pipe diameter
12 mm
Product details
2S cutting ring- Optimum cutting ring connection and functionality Multiple corrosion resistance Can rotate while pressurised- Hydraulic hose Hydraulic pipes For slow rotation or swivelling only
Surface treatment
Zinc, Nickel-plated
Connection 2, type
Thread
Connection no 1 type
Thread
Max working pressure
400 BAR
LConnections distance
23 mm
Connection 2, thread pitch
1.50 mm
S1Connection no 1 hex size
36 mm
S2Connection 2, wrench size
24.0 mm
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
M18
S3Connection no 1 wrench size
27.0 mm
KConnection no 1 thread length
12 mm
Connection no 1 thread diameter
M20
L3Connection centre to insert distance
33,5 mm
L2Connection no 1 center to end distance
39 mm
Manufacturer
Voss

2S cutting ring- Optimum cutting ring connection and functionality Multiple corrosion resistance Can rotate while pressurised- Hydraulic hose Hydraulic pipes For slow rotation or swivelling only
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,730 genuine Voss spare parts.
