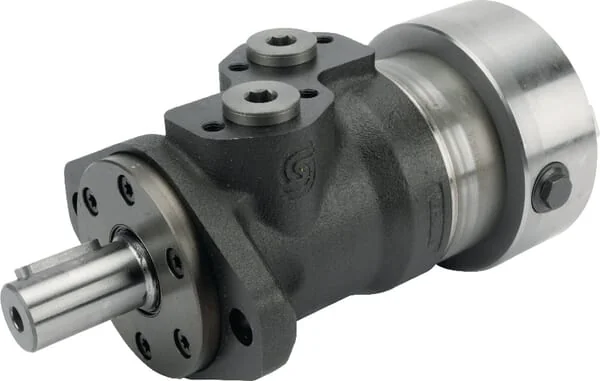

White - OMP2001515250 - Orbit Motor, Shaft Diameter 25 R. Con+P.Rl.V
White - OMP2001515250 - Orbit Motor, Shaft Diameter 25 R. Con+P.Rl.V
White - OMP2001515250 - Orbit Motor, Shaft Diameter 25 R. Con+P.Rl.V
White - OMP2001515250 - Orbit Motor, Shaft Diameter 25 R. Con+P.Rl.V
White - OMP2001515250 - Orbit Motor, Shaft Diameter 25 R. Con+P.Rl.V

In stock - ready to ship

Order now for delivery between 23 May and 27 May
Free shipping

Pay Securely with

White - OMP2001515250 - Orbit Motor, Shaft Diameter 25 R. Con+P.Rl.V

White - OMP2001515250 - Orbit Motor, Shaft Diameter 25 R. Con+P.Rl.V

€514.06

(Excl. VAT)

Price

(Excl. VAT)

€514.06

Product Details

Brand
White
Unit
Each
Max. power
10 kW
Shaft type
Straight parallel
Flange code
A2
Displacement
200 cm³/rev
Rotor length
26 mm
Sealing type
High pressure
Housing length
159,1 mm
Max. flow rate
60 l/min
Technical info
Orbital motor offers compact construction and simple mounting. High torque and shaft load, because of shorter distance from mounting flange to the point of load application.
Application range
Wherever high torque and low rotational speeds are required, e.g.: Sweepers Loader wagons Bottom chain drives Spreaders Lawn mowers Winches Agricultural/forestry/construction machines
Max pressure peak
225 BAR
Max rotation speed
310 r/min
Min rotation speed
7 r/min
Main port thread type
BSP
Max continuous torque
300 N·m
Shaft thread diameter
M8
Number of mounting holes
2
Main port thread diameter
1/2 Inch
Max. continous working pressure
115 BAR
Max intermittend working pressure
150 BAR
Manufacturer
White
