Di Natale Bertelli - TC2021F - Telescopic Cylinder + Eye
Di Natale Bertelli - TC2021F - Telescopic Cylinder + Eye
Di Natale Bertelli - TC2021F - Telescopic Cylinder + Eye
Di Natale Bertelli - TC2021F - Telescopic Cylinder + Eye

In stock - ready to ship

Order now for delivery between 23 May and 27 May
Free shipping

Pay Securely with

Di Natale Bertelli - TC2021F - Telescopic Cylinder + Eye

Di Natale Bertelli - TC2021F - Telescopic Cylinder + Eye

€219.33

(Excl. VAT)

Price

(Excl. VAT)

€219.33

Product Description

The Di Natale-Bertelli TC2021F is a genuine double acting telescopic hydraulic cylinder designed for demanding agricultural and industrial applications. Featuring a 500mm stroke, two stages, and a maximum operating pressure of 200 bar, this robust cylinder ensures reliable performance. It has a 40mm rod diameter, 50mm cylinder diameter, and 25mm pin diameter, with a closed center distance of 385mm and an oil capacity of 0.7 liters. Weighing 5.0 kg, it is built for durability and efficient hydraulic power.
Di Natale Bertelli

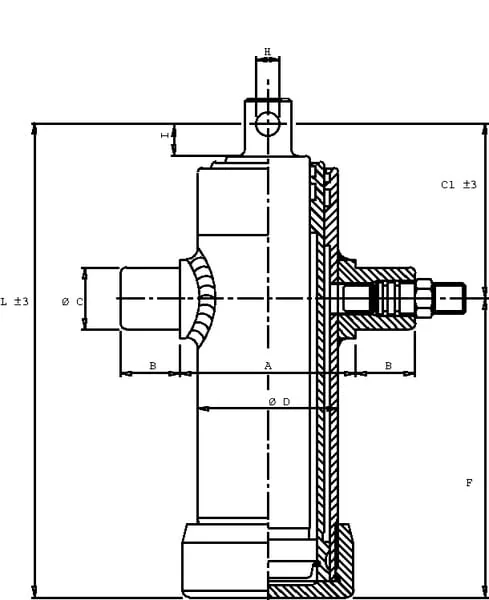

Product Details

Brand
Di Natale-Bertelli
Unit
Each
Stroke
525 mm
Weight
14,5 kg
Properties
Unpainted Low installation dimensions Excellent running properties Long service life
DIN standard
1629
LMin. length
375 mm
Oil capacity
1,3 l
Number of stages
2
Sealing material
Polyurethane
Stage 1 diameter
46 mm
Stage 2 diameter
61 mm
Application range
Trailer tipping cylinder Vehicle construction
Cylinder material
Steel S355J2+N
DOutside diameter
80,5 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
35 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
40 mm
Max. capacity - stage 2
5,2 t
Max. capacity at 180 bar
5,2 t
Mounting type - rod connection
Bore
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
24 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
100 mm
FMounting hole to swivel tap distance
275 mm
HMounting hole diameter - rod connection
26 mm
Mounting hole diameter - cylinder connection
40 mm
Manufacturer
Di Natale-Bertelli
