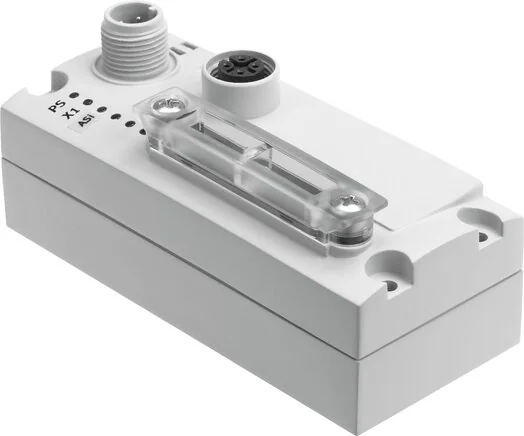

Festo - CTEU-AS-572555 - Bus Node

SKU: festo-cteu-as-572555

Festo - CTEU-AS-572555 - Bus Node

€396.42€338.82 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€396.42

Brand
Festo
Report
As interface
Diagnosis
Unterspannung, Kommunikationsfehler, Systemdiagnose
Permission
c UL us - Listed (OL)
Fastening Type
auf Elektrik-Anschaltung, auf Elektrik-Anschlussplatte
Parameterising
Watchdog disable, Watchdog enable
Housing Material
PA
Operating Element
DIL switch
Fieldbus Interface
As interface
Protection Category
IP65, IP67
Dimensions W x L x H
40 mm x 91 mm x 50 mm
Pitch Dimension (mm)
40
Internal Cycle Time (ms)
10
LED Display Bus Specific
AS-i: As interface Operation
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 70
Fieldbus Interface, Report
As interface
Fieldbus Interface, Function
PS: Operating voltage electronics and load supply, X1: System status module I port 1
Max. Address Volume, Outputs
to EU EMC directive
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Fieldbus Interface 2, Function
Voltage supply, Bus connector forwarding
Operating Voltage Range DC (V)
20 to 31.6
Power Supply, Connection Pattern
LABS containing materials included, RoHs compliant
Max. Address Volume Inputs (Byte)
2
Fieldbus Interface, Connection Type
Plug
Fieldbus Interface 2, Connection Type
socket / container / ….
Information About Protection Category
in assembled condition, unused connection closed
Fieldbus Interface, Connection Technology
M12x1 A coded to EN 61076-2-101
Fieldbus Interface, Number Of Pins / Wires
4
Intrinsic Power Input At Operating Voltage
Type 50 mA
Fieldbus Interface 2, Connection Technology
M12x1 A coded to EN 61076-2-101
Fieldbus Interface 2, Number Of Pins / Wires
4
Fieldbus Interface, Galvanically Separated (A)
4
EAN
4052568260217
Manufacturer
Festo
