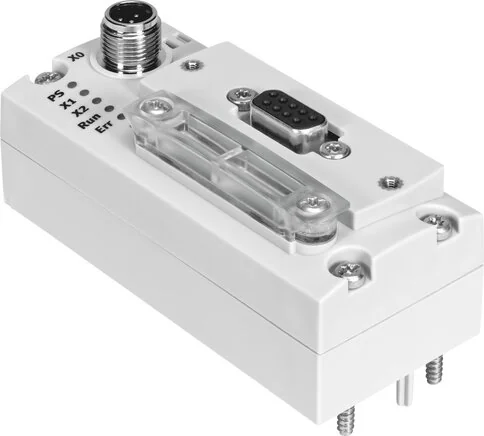

Festo - CTEU-CC-1544198 - Bus Node

SKU: festo-cteu-cc-1544198

Festo - CTEU-CC-1544198 - Bus Node

€450.33€384.90 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€450.33

Brand
Festo
Report
CC-Link
Diagnosis
Unterspannung, Kommunikationsfehler, Systemdiagnose
Permission
c UL us - Listed (OL), RCM Mark
Fastening Type
auf Elektrik-Anschaltung, auf Elektrik-Anschlussplatte
Parameterising
Diagnose aktivieren, Failsafe- und Idle Reaktion
Housing Material
PA
Operating Element
DIL switch
Fieldbus Interface
Serial interface
System status can be shown from process dat
Internal Cycle Time
1 ms per 1 byte user data
Protection Category
IP65, IP67
Dimensions W x L x H
40 mm x 91 mm x 50 mm
Pitch Dimension (mm)
40
LABS (PWIS) Conformity
optional connection technology with accessories, Open Style (screw clamp, 5-pin, Protection Class IP20)
LED Display Bus Specific
Err: Data transfer error, Run: Bus active
Voltage Supply, Function
Electronics and load
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 70
Fieldbus Interface, Report
CC-LINK®
Max. Address Volume, Inputs
KC-EMV
Fieldbus Interface, Function
PS: Operating voltage electronics and load supply, X1: System status module I port 1, X2: System status module I port 2
Max. Address Volume, Outputs
to EU EMC directive
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
18 to 30
Voltage Supply, Connection Type
Plug
Power Supply, Connection Pattern
LABS containing materials included, RoHs compliant
Max. Address Volume Inputs (Byte)
16
Fieldbus Interface, Connection Type
socket / container / ….
Information About Protection Category
in assembled condition, unused connection closed
Voltage Supply, Connection Technology
M12x1 A coded to EN 61076-2-101
Voltage Supply, Number Of Poles/wires
5
Fieldbus Interface, Connection Technology
Sub-D
Fieldbus Interface, Galvanically Separated
yes
Fieldbus Interface, Number Of Pins / Wires
9
Intrinsic Power Input At Operating Voltage
Type 70 mA
UKCA Marking (See Declaration Of Conformity)
156 - 10000 kbit/s
Fieldbus Interface, Galvanically Separated (A)
4
EAN
4052568238209
Manufacturer
Festo
