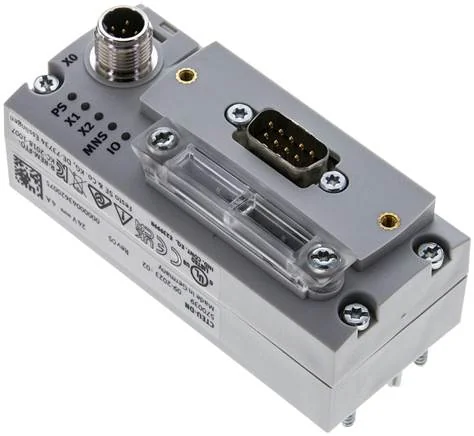

Festo - CTEU-DN-570039 - Bus Node

SKU: festo-cteu-dn-570039

Festo - CTEU-DN-570039 - Bus Node

€396.42€338.82 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€396.42

Brand
Festo
Report
DeviceNet
Diagnosis
Unterspannung, Kommunikationsfehler, Systemdiagnose
Permission
RCM mark, c UL us - Listed (OL)
Fastening Type
auf Elektrik-Anschaltung, auf Elektrik-Anschlussplatte
Parameterising
Diagnoseverhalten, Failsafe- und Idle Reaktion
Housing Material
PA, PC
Operating Element
DIL switch
Fieldbus Interface
CAN bus
Quick connect, System status can be shown from process dat, - Acyclical data access via "Explicit message"
Internal Cycle Time
1 ms per 1 byte user data
Protection Category
IP65, IP67
Dimensions W x L x H
40 mm x 91 mm x 50 mm
Pitch Dimension (mm)
40
LABS (PWIS) Conformity
optionale Anschlusstechnik mit Zubehör:, optionale Anschlusstechnik mit Zubehör: Micro Style (Stecker/Dose M12x1 A-codiert, 5-polig, Schutzart IP65) Open Style (Klemmleiste, 5-polig, Schutzart IP20), Open Style (Schraubklemme, 5-polig, Schutzart IP20)
LED Display Bus Specific
IO: I/O status, MNS: Network status
Voltage Supply, Function
Electronics and load
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 70
Fieldbus Interface, Report
DeviceNet
Max. Address Volume, Inputs
KC-EMV
Fieldbus Interface, Function
PS: Operating voltage electronics and load supply, X1: System status module I port 1, X2: System status module I port 2
Max. Address Volume, Outputs
to EU EMC directive
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
18 to 30
Voltage Supply, Connection Type
Plug
Power Supply, Connection Pattern
LABS containing materials included, RoHs compliant
Max. Address Volume Inputs (Byte)
8
Fieldbus Interface, Connection Type
Plug
Information About Protection Category
in assembled condition, unused connection closed
Voltage Supply, Connection Technology
M12x1 B coded to EN 61076-2-101
Voltage Supply, Number Of Poles/wires
5
Fieldbus Interface, Connection Technology
Sub-D
Fieldbus Interface, Galvanically Separated
yes
Fieldbus Interface, Number Of Pins / Wires
9
Intrinsic Power Input At Operating Voltage
Type 65 mA
UKCA Marking (See Declaration Of Conformity)
125 kbit/s, 250 kbit/s, 500 kbit/s
Fieldbus Interface, Galvanically Separated (A)
4
Intern Power Consumption Nominal Operating Voltage
EDS file
EAN
4052568216498
Manufacturer
Festo
