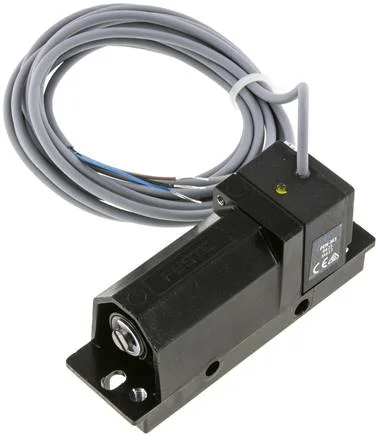

Festo - PEN-M5-8625 - PE Transducer

SKU: festo-pen-m5-8625

Browse all parts
Festo - PEN-M5-8625 - PE Transducer

€351.64€300.55 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€351.64

Brand
Festo
Permission
RCM mark
Material Note
RoHs compliant
Control Output
PNP
Fastening Type
With throughway bores
Gasket Material
NBR
Cable Length (m)
2,5
Housing Material
Zinc pressure cast
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Measured Parameter
Relative pressure
Measurement Process
Pneumatic electric differential pressure switch
Protection Category
IP67
Pneumatic Connection
M5
Cable Sleeve Material
PUR
Electrical Connection
Open end
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Output Current (mA)
350
Medium Temperature (°C)
-20 to 60
Operating Pressure (MPa)
-0,1 to 0,8
Short Circuit Resistance
yes
Ambient Temperature (°C)
-20 to 60
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Max. Switching Frequency (Hz)
70
Operating Voltage Range DC (V)
12 to 30
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Settings Range Threshold Value (bar)
-0.8 to 8
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
EAN
4052568008819
Manufacturer
Festo
