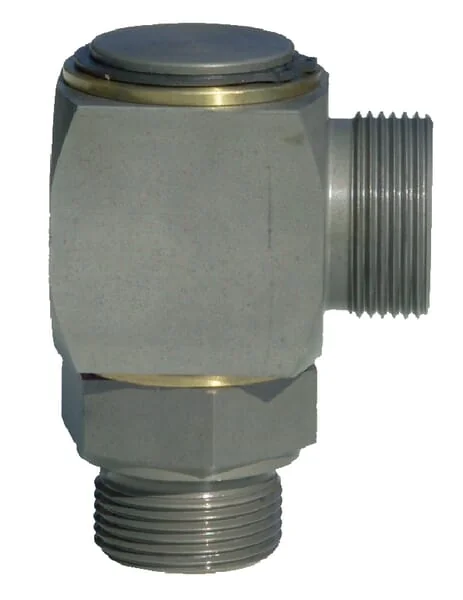

Voss - DGWEV10SR38 - Voss Swivel coupling 10S R3/8

OEM Quality

SKU: voss-dgwev10sr38

Voss - DGWEV10SR38 - Voss Swivel coupling 10S R3/8

€63.96€54.67 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€63.96

Brand
Voss
Part Numbers
DGWEV10SR38
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Length
47 mm
Series
10S
Includes
Swivel coupling Cutting ring Gland nuts
DIN standard
2401 2353 228 3852 259
ISO standard
228
Pipe diameter
10 mm
Product details
2S cutting ring Optimal cutting ring connection and functionality Multiple corrosion resistance Can swivel under pressure For slow rotation or swivelling only
Surface treatment
Zinc, Nickel-plated
Connection 2, type
Thread
Flow rate at 2 bar
40 l/min
Connection no 1 type
Thread
Max working pressure
400 BAR
LConnections distance
18 mm
S1Connection no 1 hex size
27 mm
Connection no 1 thread type
BSP
S2Connection 2, wrench size
22.0 mm
S3Connection no 1 wrench size
23.0 mm
KConnection no 1 thread length
12 mm
Connection no 1 thread diameter
3/8 Inch
L3Connection centre to insert distance
26,5 mm
Manufacturer
Voss

2S cutting ring Optimal cutting ring connection and functionality Multiple corrosion resistance Can swivel under pressure For slow rotation or swivelling only
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,730 genuine Voss spare parts.
