JAG - 618254G - Claas Wooden Shaker Bearing Shell
JAG - 618254G - Claas Wooden Shaker Bearing Shell
JAG - 618254G - Claas Wooden Shaker Bearing Shell
JAG - 618254G - Claas Wooden Shaker Bearing Shell
JAG - 618254G - Claas Wooden Shaker Bearing Shell
JAG - 618254G - Claas Wooden Shaker Bearing Shell
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

JAG - 618254G - Claas Wooden Shaker Bearing Shell

JAG - 618254G - Claas Wooden Shaker Bearing Shell

€0.00

(Excl. VAT)

Price

(Excl. VAT)

€0.00

Product Description

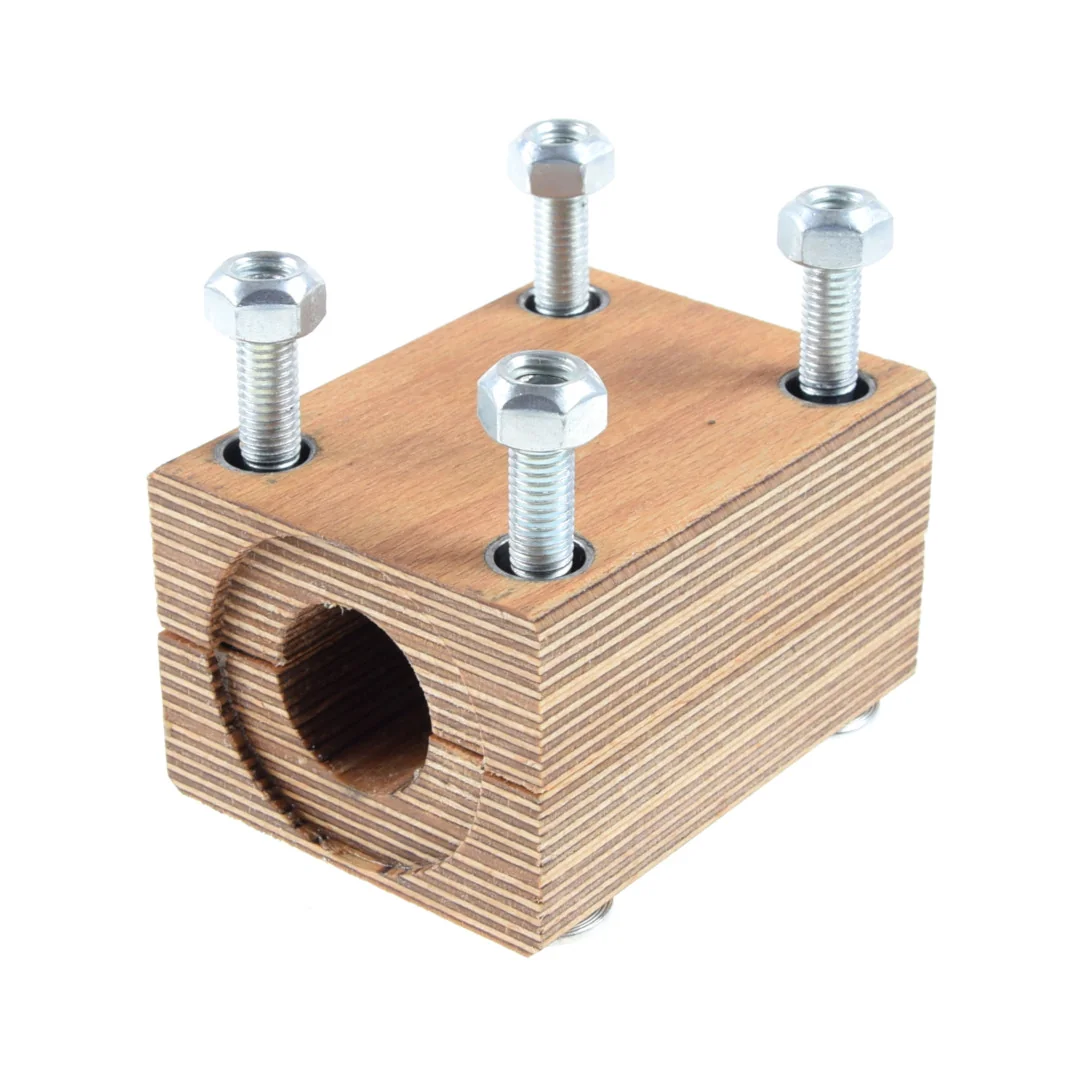

This wooden bearing shell is a component of the threshing-unit shaker assembly. It provides a low-friction, sacrificial wear surface for the rotating shaft that drives the shaker mechanism. The set includes two bearing-shell halves, two plates, four screws, and four self-locking nuts, which together secure the shell around the shaft journal. As the wood wears over time, clearance increases, leading to vibration and misalignment in the shaker drive. The original manufacturer machines the shell to match the shaft diameter and housing bore of the parent combine, so the assembly maintains correct radial clearance without additional shimming. On reinstall, ensure the self-locking nuts are torqued to specification and that the two halves are aligned squarely before tightening.
Jag
Jag is a brand that has established itself in the agricultural and industrial sectors, primarily known for its range of components and spare parts. While specific founding details like year or founder are not widely publicized, the company has built a reputation for providing reliable parts essential for the maintenance and operation of various machinery. Its focus is on delivering functional and durable solutions for demanding environments. The brand's product offerings typically include a wide array of replacement parts crucial for the upkeep of agricultural equipment. These often encompass items such as filters, bearings, and seals, which are vital for the smooth functioning of tractors, harvesters, and other farm machinery. Jag components are designed to meet the operational requirements of heavy-duty applications, ensuring longevity and performance. At Partao, we provide a comprehensive selection of Jag spare parts. Our top categories for this brand include Air Filters, Axle Seals, Bale Handling Equipment, Ball Bearings, and Bearing Housings. Over 560 genuine Jag spare parts are available at Partao. Equipment owners and maintenance professionals frequently select Jag parts for their repair and service needs. The brand's commitment to producing dependable components helps ensure that agricultural operations can continue with minimal interruption, offering a practical choice for maintaining machinery across diverse farming applications.

Product Details

Brand
JAG
Fits

Claas

Dominator 130Dominator 140Dominator 150Dominator 38Dominator 48Dominator 58Dominator 68Dominator 76Dominator 78Dominator 86Dominator 88Dominator 88 VXDominator 96Dominator 98Dominator 98 VXMedion 310Medion 320Medion 330Mega 202Mega 202 IIMega 203Mega 203 IIMega 204Mega 204 II
Width
80 mm
Location
Threshing unit
Application
Harvesting machines
Product Type
Bearing shell
Set Includes
plate x2, self-locking nut x4, bearing shell half x2, screw x4
Inner Diameter
30 mm
Number Of Holes
4
Manufacturer
JAG
